Lifelike, Wireless
and Tetherless Preterm
Patient Simulator
The Premie HAL® S2209 is a lifelike, wireless and tetherless 30-week preterm patient simulator designed to facilitate the training of residents and health care professionals in the areas of preterm airway management, resuscitation, stabilization, transport, and intensive care.

Real-time CPR Quality Feedback and Performance Reports
eCPR™ sensors inside Premie HAL capture ventilation and compression quality metrics in real time, allowing educators to identify and address gaps in performance with greater efficacy.

Available Skin Tones at No Extra Charge

LIGHT

MEDIUM

DARK
FEATURE HIGHLIGHTS
General
  • •   Gestational age: 30-week preterm neonate
  • •   Weight: 2.9 lb. (1.32 kg)
  • •   Length: 15.71 inches (39.9 cm)
  • •   Smooth and supple full-body skin
  • •   Tetherless and wireless; fully responsive during transport
  • •   Wireless control at distances up to 100 ft.
  • •   Internal rechargeable battery provides hours of tetherless operation
  • •   UNI® Tablet PC included
  • •   Includes 5 preprogrammed SLEs and Facilitator’s Guidebook

Airway
  • •   Lifelike and anatomically accurate oral cavity and airway
  • •   Supports NG and OG tube placement
  • •   Supports endotracheal intubation using standard adjuncts
  • •   Selectable upper airway sounds synchronized with breathing

Breathing
  • •   Automatic, spontaneous breathing
  • •   Programmable respiratory rates and I:E ratios
  • •   Preprogrammed respiratory patterns and grunting
  • •   Selectable normal and abnormal lung sounds
  • •   Compliant lungs present visible chest rise following guideline recommended flow, PIP, and PEEP values
  • •   Supports standard positive pressure ventilation devices including bag-valve-mask, resuscitators, mechanical ventilators, CPAP, and more
  • •   Real-time PPV ventilation feedback via UNI control interface
  • •   Programmable unilateral chest rise simulates pneumothorax
Neurological
  • •   Crying synchronized with breathing



Circulation
  • •   Central cyanosis with variable discoloration
  • •   Includes comprehensive library of ECG rhythms with customizable beat variations
  • •   Supports ECG monitoring using real devices
  • •   Normal and abnormal heart sounds with adjustable rates
  • •   eCPR™ Real-time quality feedback and reporting
    •      Time to CPR
    •      Compression depth/rate
    •      Compression interruptions
    •      Ventilation rate
    •      Excessive ventilation
    •      Smart CPR voice coach
    •      CPR performance report
  • •   Automatic and palpable pulses
    •      Fontanelle
    •      Brachial
    •      Umbilicus
    •      Femoral
  • •   Pulse strength is blood pressure dependent
  • •   Supports IV cannulation: bolus, infusion, and sampling
    •      Dorsum of hand (bilateral)
    •      Umbilical catheterization (UVC/UAC)
    •      Dorsum of foot
  • •   Intraosseous access at right tibia supports continuous infusion
  • •   Temperature sensor placement detection
  • •   Supports virtual pacing and defibrillation via Gaumard Vitals™ Virtual Patient Monitor
UNI® Simulator Control Interface
  • •   Supports operation on-the-fly or by way of programmable scenarios
  • •   3D Patient Visualization
  • •   Virtual patient monitor view
  • •   Scenario designer
  • •   Preprogrammed and editable scenario library
  • •   eCPR™ – CPR quality monitor and trainer
  • •   Hypoxia model
  • •   Lab report designer
  • •   Questionnaire form designer
  • •   Time-stamped event logging and provider actions tracking

Gaumard Vitals™ Patient Monitor (Option)
  • •   Customizable interface can mimic the look of various real patient monitor brands
  • •   20+ Dynamic scalars and waveforms including HR, ABP, SpO2, RR, EtCO2, temperature, time, and more
  • •   Customizable alarms for vital sign parameter high/low threshold
  • •   Virtual 12-Lead ECG Monitoring
  • •   Data histogram
  • •   Built-in virtual defibrillator and pacer
  • •   Wireless data communication

Package Contents
  • •   Premie HAL® S2209
  • •   UNI® Tablet PC
  • •   5 Simulated Learning Experiences™
  • •   Facilitator's Guidebook
  • •   Battery charger
  • •   Replacement IV lower arms, IO inserts, umbilical cords
  • •   Post cord-detachment navel
  • •   Carrying case
  • •   User manual
  • •   1 year standard warranty
  • •   2, 3, 5 year warranty plans available




The Unique Challenge of Preterm Airway Management
Developed using the latest laser and 3D printing technology, Premie HAL S2209 presents participants with the most accurate airway anatomy available. High anatomical accuracy ensures participants can use standard airway intubation devices to develop technique and fine motor skills further.
IV access on dorsum of hands, dorsum of left foot, and umbilicus
Automatic, spontaneous breathing and bilateral palpable pulses
Supports IO infusions
Displays cyanosis

Real Mechanical Ventilation.
Real Feedback.
Premie HAL® features compliant lungs that produce realistic PV waveforms on real mechanical ventilators and other respiratory equipment. This allows participants to follow guideline-recommended settings and algorithms while developing skills more directly transferable to real situations.

Wireless and tetherless. Ready for transport, handoffs, and evac drill exercises.
Premie HAL is fully functional in-transit thanks to its extra-long battery life and proven wireless technology.


Wireless Control at Distances Up to 100 Ft. (30.48 m) 1
Internal Rechargeable Battery
Up to 2 hrs. of Tetherless Operation 2

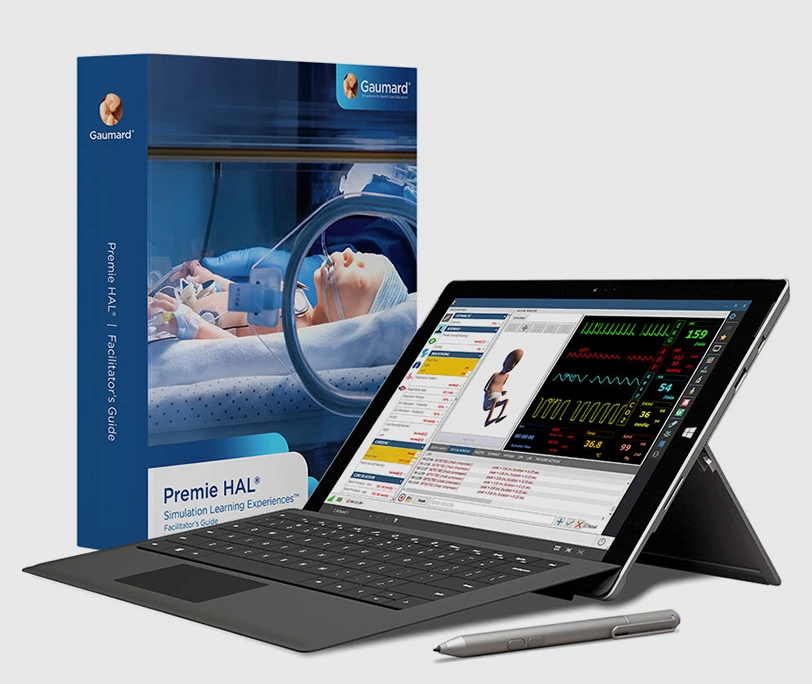

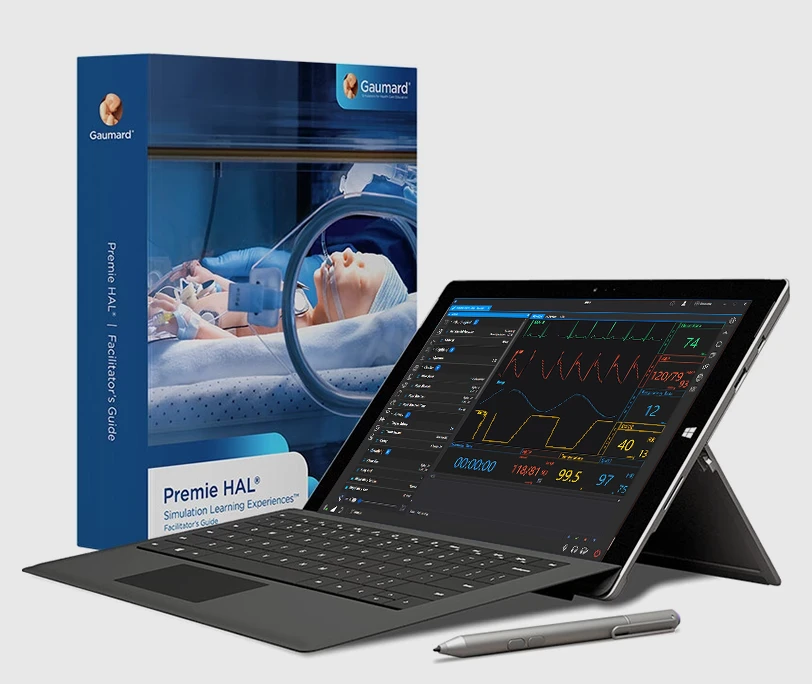

A complete solution.
Includes UNI® Tablet PC
and Simulation Learning
Experiences™
Premie HAL includes the powerful UNI control interface and 5 outcome-focused scenarios accompanied with a printed guide for setting up, planning, and facilitating each learning experience.

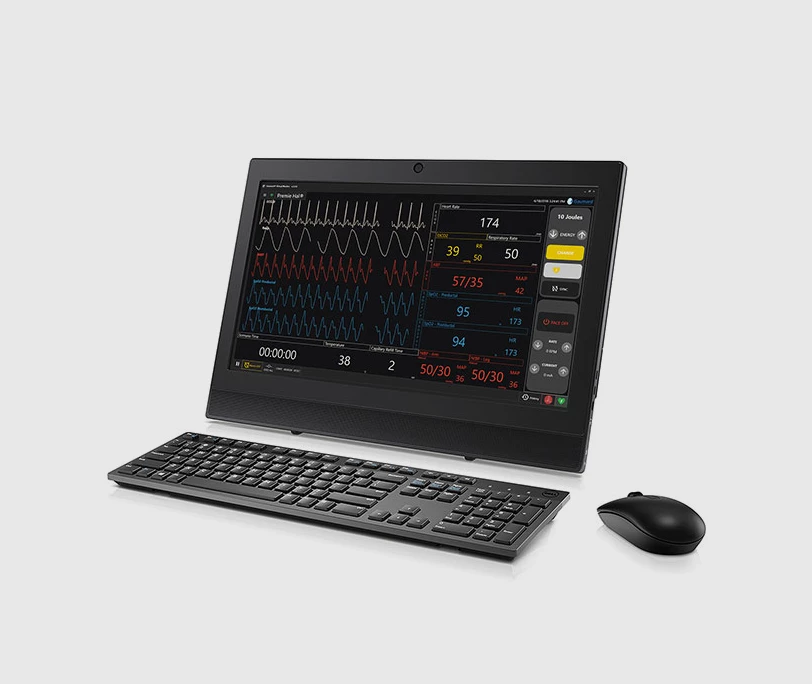

Optional Bedside
Gaumard Vitals™ Patient Monitor
The optional Gaumard Vitals™ Patient Monitor simulates the functionality and look of a real patient monitor, allowing participants to practice data interpretation, documentation, and clinical decision-making skills.


1. Estimated maximum range in environment unobstructed and free of interference. Actual distance may vary depending on environmental factors and local regulations.
2. Battery life estimates dependent on active features and settings; results may vary.
