HAL® S315.200 - Adult Heart and Lung Sounds Skills Trainers

In stock

Model:

S315.200.M2.PK

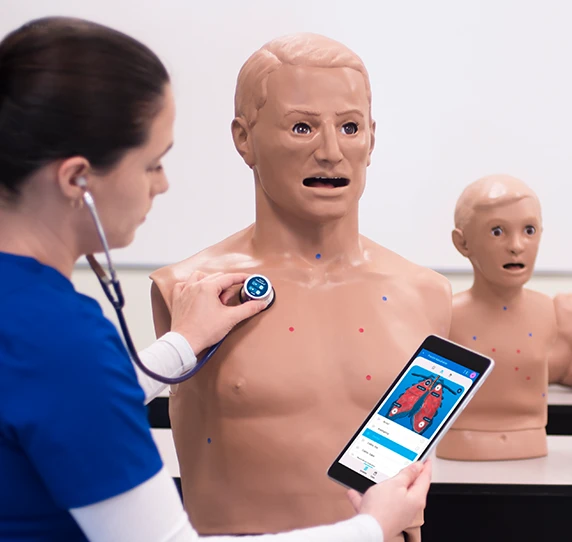

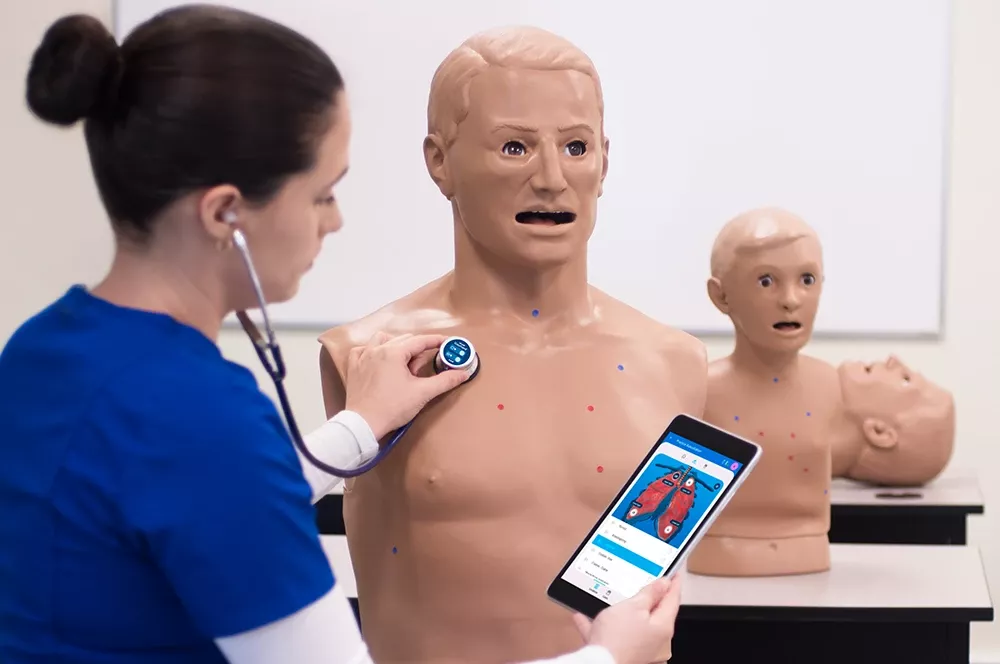

The HAL® S315.200 is a Gaumard® manikin designed to help teach site-specific heart and lung auscultation skills using seamless simulation technology. Simply press the bell against the skin and listen. The students use realistic and palpable anatomic landmarks on the manikin to locate the site where a specific sound should be heard. If correct, they will hear the appropriate sound through the stethoscope and/or external speakers.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

S315.200 HAL® Adult Heart and Lung Sounds

The amazing technology that simulates the various heart and breath sounds is hidden within the stethoscope bell itself. There are no bulky boxes or transmitters, making it easy to use and realistic. Simply press the bell against the simulator’s skin at the correct anterior or posterior auscultatory site and listen to the corresponding sound. The VS100/VS105 include a reference key card that indicates the auscultatory sites locations and the sound types available. Additionally, the package includes a set of optional loudspeakers useful when teaching an audience.

VS100 SOUND DETAILS

SOUND	COMMENT
Venous Hum	This continuous murmur may be found in children aged 3 to 6 years. It occurs as a result of the turbulence in the jugular venous system and is only heard when the child is in the upright position. The rate is about 96 beats per minute.
Aortic Stenosis	This systolic murmur is loudest over the ascending aorta. Duration and intensity vary with the severity of stenosis. An ejection click may be heard.
Split S2	Sounds are rather normal. Degree of splitting increases with the inspiration and decreases with the expiration. Wide split suggests prolonged RV ejection or shortened LV ejection; narrow split suggests early closure of pulmonary valve.
Pulmonary Stenosis	This systolic murmur is normally loudest over the main pulmonary artery. Duration and intensity vary with the severity of stenosis.
Systolic Fixed S2	Fixed S2 does not change width during respiration. The absence of split S2 usually indicates a condition that prolongs RV ejection time or shortens LV ejection. Conditions include volume/pressure overload and RBBB.
1 Year Heart	Normal heart sounds heard in a 1 y/o child. The rate is 120 bpm.
6 Year Heart	Normal heart sounds heard in a 6 y/o infant. The rate is 84 bpm.
Stills Murmur	The vibratory murmur may be found in children between ages 3 to 6 years and sounds like a "twanging string" or squeaking/ buzzing at a low frequency. During inspiration, murmurs increase on the right side and decrease in the left.
Mitral Valve Regurgitation	Lesions produce this systolic murmur, more often rheumatic than congenital in origin. Chest scans may show pulmonary vein congestion, pulmonary edema, or an enlargement of the left atrium/ventricle.
Split S1	S1 relates to closure of mitral and tricuspid valves. Not common in normal children, and may indicate RBBB or other anomalies. Sound can be confused with an ejection click S4.
Normal Infant	Expiration sounds are louder, have a higher pitch, and are of longer duration than during inspiration. The silent period or pause following expiration is longer than the one between expiration and inspiration.
Normal Child	Expiration sounds are louder, have a higher pitch, and are of longer duration than during inspiration. The silent period or pause following expiration is longer than the one between expiration and inspiration.
Stridor Sounds	Patient has marked respiratory distress and a narrow aperture between the vocal cords that produces a high pitched tone during both inspiration and expiration. During the end of expiration, there is an abrupt drop in pitch.
Wheezing Sounds	These musical wheezing sounds are often heard in asthma patients. During inspiration, the wheeze is slightly higher in pitch than during expiration. Wheezing in asthmatics is often present in either one or both phases of respiration.
Ronchi Sounds	Coarse crackles are present during both inspiration and expiration. There are also some very low pitched repetitive sounds that are ronchi. High pitched squeaks are also audible against a background of bronchial breath sounds.

VS100 SOUND TABLE

POSTERIOR

COLOR	SOUND
Red	➊ Base Sounds ➋ Physiological Split S2 ➌ Opening Snap ➍ Mid-Systolic Click	➎ Tracgheal Sounds ➏ Bronchial Sounds ➐ Wheezing Sounds ➑ Coarse Crackles
Blue	➊ Fixed Split S2 ➋ Split S2 ➌ Friction Rub ➍ Intermittent S4	➎ Stridor Sounds ➏ Wheezing Sounds ➐ Pleural Friction ➑ Pulmonary Edema
Purple	➊ Base Sounds ➋ Physiological Split S2 ➌ Paradoxical Split S2 ➍ Apex Sounds	➎ Tracgheal Sounds ➏ Bronchial Sounds ➐ Bronchial Sounds ➑ Ronchi Crackles
Green	➊ Fixed Split S2 ➋ Physiological Split S2 ➌ Opening Snap ➍ S3	➎ Stridor Sounds ➏ Wheezing Sounds ➐ Pleural Friction ➑ Coarse Crackles
Yellow	➊ Fixed Split S2 ➋ Split S2 ➌ Friction Rub ➍ Starr-Edwards Valve	➎ Stridor Sounds ➏ Wheezing Sounds ➐ Med-Fine Crackles ➑ Pulmonary Edema

VS100 USER GUIDE

GETTING STARTED

Unscrew the top cover of the stethoscope bell. Remove and discard the plastic insert separating the two batteries prior to first without use.

ON/OFF

Push the button to power the stethoscope on/off. When the stethoscope is on the power light blinks green. When the battery is low the power light blinks red. The stethoscope automatically powers off after 6 minutes of inactivity or after 40 seconds of looking for a sound without success.

SOUND SELECTION

Press and hold the button for 2 seconds to begin selecting the desired sound set as per the “VS100 SOUND TABLE" to the left. Press the button briefly to cycle through the different sound set colors. Press and hold the button for 2 seconds again to hide the selected color.

PLAYING A SOUND

Press the stethoscope firmly against the auscultation areas to listen for sounds. If the stethoscope is pressed against non-auscultation areas the indicator lights stop blinking.

CHANGING THE BATTERY

The VS100 Virtual Stethoscope uses two CR2032 batteries (8 replacement batteries are included). To replace the batteries, unscrew the top cover of the stethoscope bell. Pull the battery removal strip outward to remove the batteries. Insert two new batteries, positive (+) sides facing down, taking care to relocate the battery removal strip in its proper position. Replace the top cover of stethoscope bell.
